Product Name
Quantum HD 2 USB-C Audio Interface, EU
Series
Quantum
Color
Black

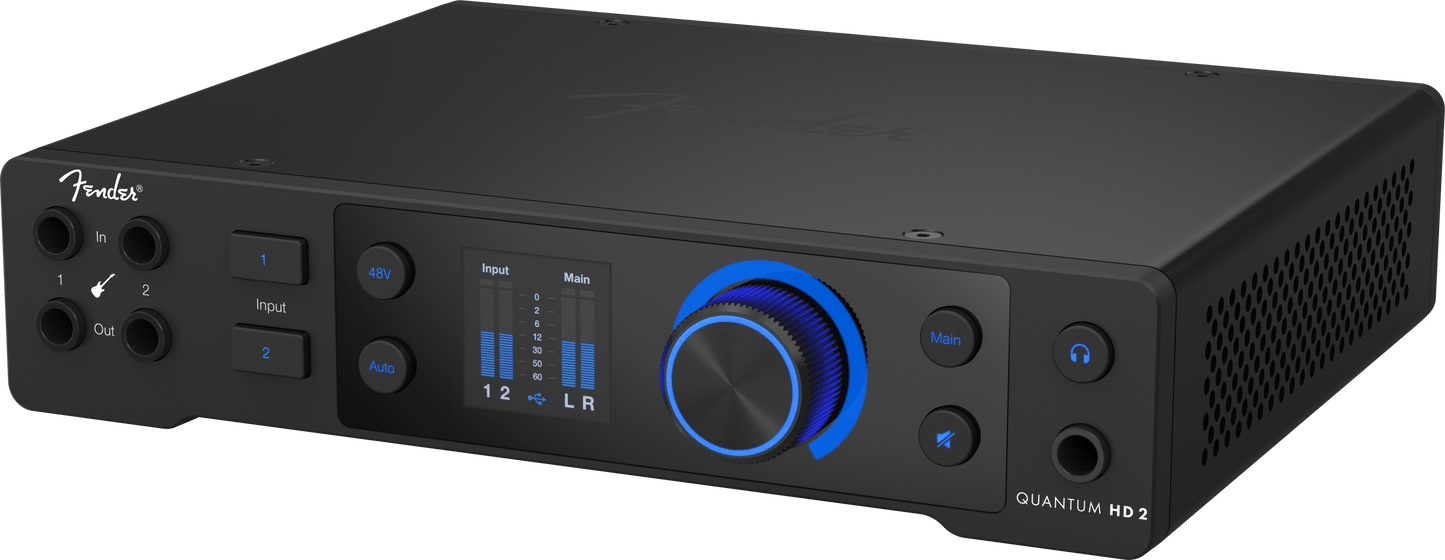

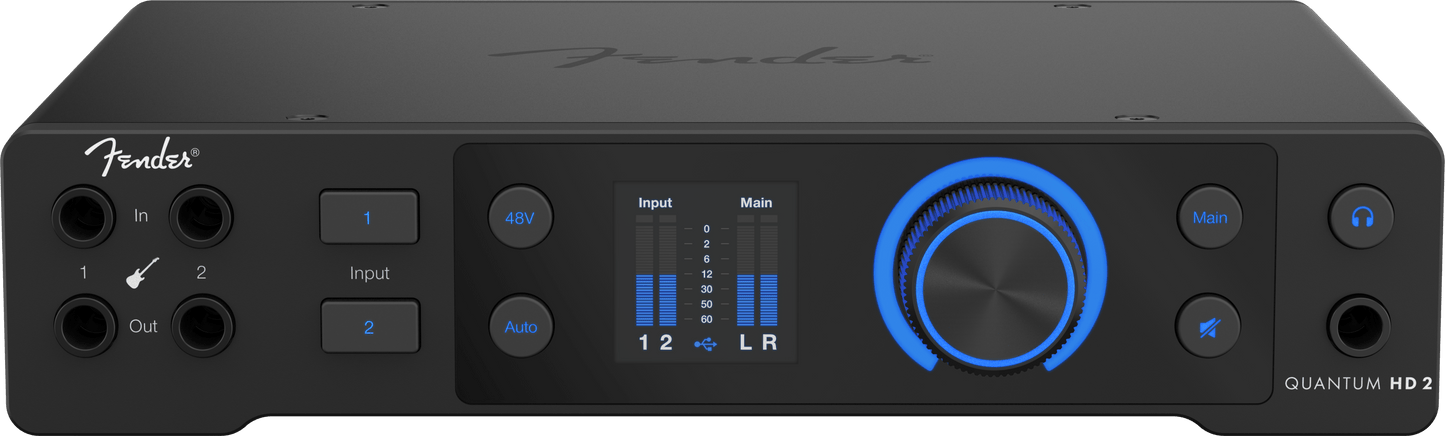

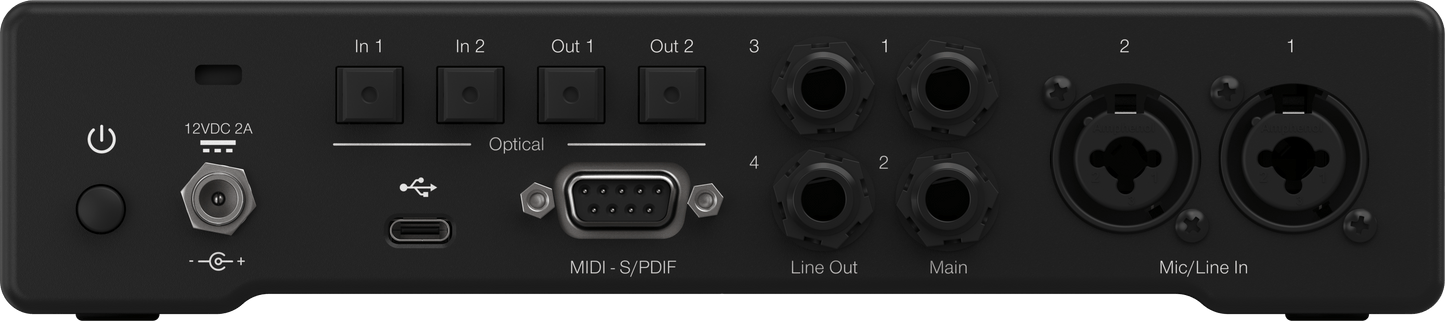

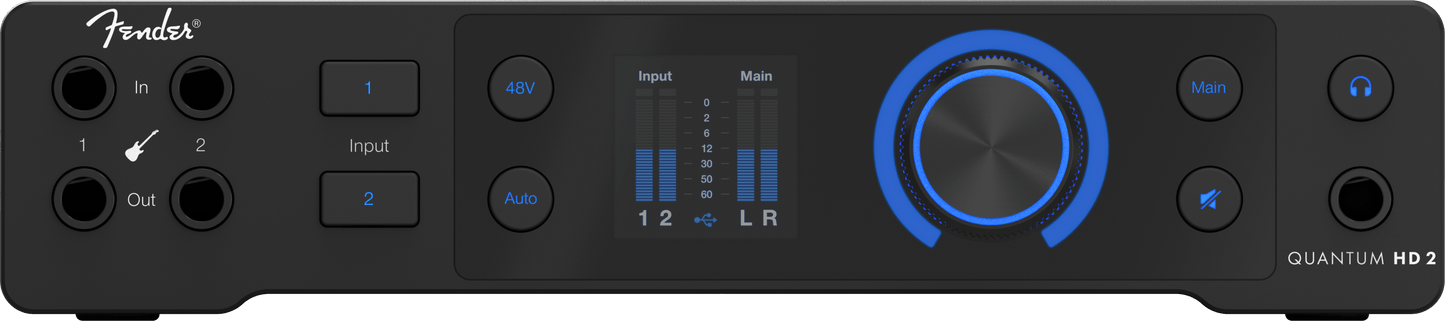

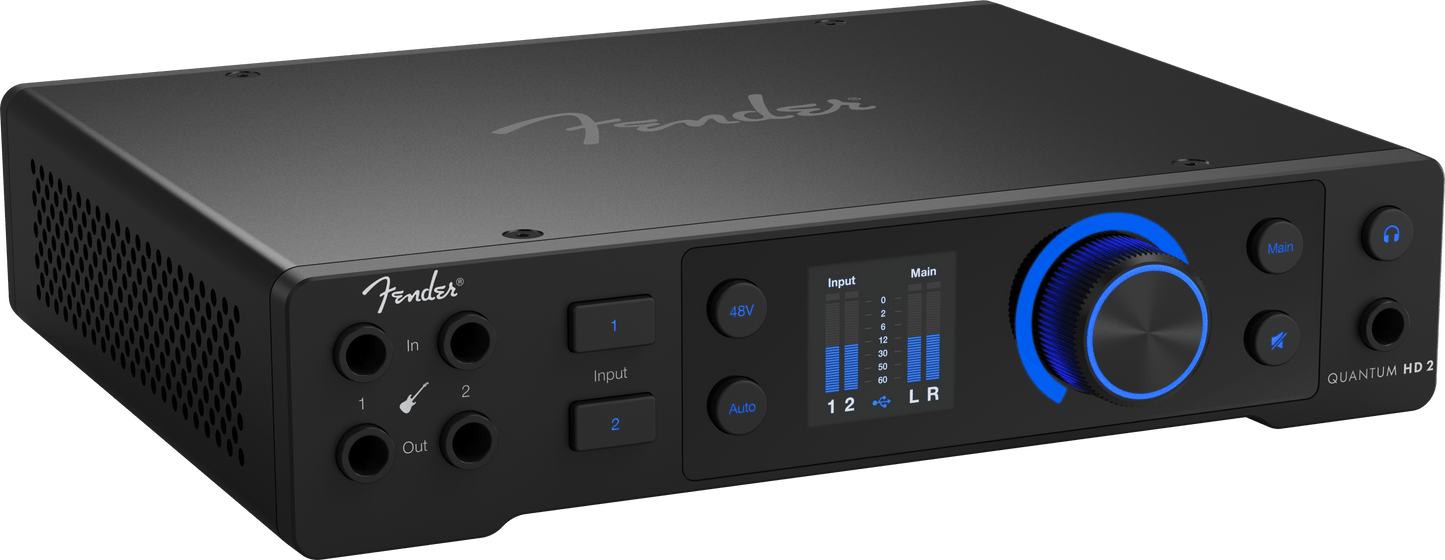

Quantum HD 2 USB-C Audio Interface
Regular price
579,00 €
Regular price
579,00 €
579,00 €
Sale price
Unit price
per
inc. VAT*
Quantum HD 2 USB-C Audio Interface
Quantum HD 2 USB-C Audio Interface
Regular price
579,00 €
Regular price
579,00 €
579,00 €
Sale price
Unit price
per
inc. VAT*
Couldn't load pickup availability
Shipping & Returns
Free shipping on orders over 100€. Delivery Times: Standard 2-5 Days, Express 1-3 Days. Learn more
Return or exchange your purchase for any reason within 30 days of receipt. Learn more
Details
Summary
Overview
20 x 24, 32-bit / 192 kHz Recording Interface with Fender Studio Pro Perpetual License Included
The Fender Quantum HD 2 is a 20 x 24 USB-C interface designed for musicians, producers, and project studios who demand accuracy, clarity, and flexibility. Featuring next-generation MAX-HD mic preamps, ultra-low-latency drivers, and high-performance converters, the HD 2 captures every nuance of vocals, guitars, bass, and full-band sessions with professional precision.
Front-facing Fender instrument inputs provide transparent, studio-ready recordings for guitar and bass, while Auto Gain simplifies setup and re-amp outputs allow tonal experimentation without extra takes. Integrated DSP monitor mixing and loopback routing streamline streaming, podcasting, and recording workflows.
Control preamp gain, phantom power, and monitoring remotely via the Fender Studio Pro or Universal Control app for seamless integration. Ideal for project studios, the Fender Quantum HD 2 balances compact size with professional-grade I/O.
Overview
Features
- Professional software included: Fender Studio Pro perpetual license
- Ultra-high-fidelity USB-C recording interface with MAX-HD mic preamps
- 20 x 24 I/O configuration with high-performance 32-bit / 192 kHz converters
- Expanded Digital I/O: 16 ADAT channels and S/PDIF I/O.
- Front-facing Fender instrument inputs optimized for guitar and bass
- Auto Gain button for instant, hassle-free recording levels
- Re-amp outputs for creative tone exploration with amps and pedals
- DSP monitor mixer and loopback routing for streaming and monitoring
- Control preamps, phantom power, and outputs via Fender Studio Pro or Universal Control app
General
Microphone Inputs
Connection Type
XLR Female (Combo), Balanced
Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance
1600 Ohms
Dynamic Range
116 dB (A-Weighted, Minimum Gain)
EIN
-130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)
THD+N
0.002% (1 kHz, Minimum Gain)
Gain Range
75 dB
Maximum Input Level
+18 dBu (Balanced, Minimum Gain)
Phantom Power
+48 VDC
Line Inputs
Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance
10K Ohms
Dynamic Range
118 dB (A-Weighted, Minimum Gain)
THD+N
0.001% (1 kHz, Minimum Gain)
Gain Range
± 10 dB
Maximum Input Level
+18 dBu (Balanced, Minimum Gain)
Instrument Inputs
Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Dynamic Range
111 dB (A-Weighted, Minimum Gain)
THD+N
0.003% (1 kHz, Minimum Gain)
Gain Range
75 dB
Maximum Input Level
+21 dBu (Unbalanced, Minimum Gain)
Line Outputs
Connection Type
1/4" TRS Female
Main Outputs
Connection Type
1/4" TRS Female
Headphone Outputs
Connection Type
One - 1/4" TRS Female Stereo
Frequency Response
20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)
Impedance Working Range
33 Ohms
Dynamic Range
118 dB (A-Weighted)
THD+N
0.001% (1 kHz)
Maximum Output Level
11 dBu (50 Ohms)
MIDI I/O
Connection Type
5-Pin Female DIN
Power
Voltage
230V EUR
Voltage Requirements
100-240 VAC, 50-60 Hz
Digital Audio
Connectivity
USB-C®
Bit Depth
32-bit
Dynamic Range
124 dB
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Measurements
Height
1.9" (48.3 mm)
Depth
7.5" (191 mm)
Width
8.5" (216 mm)
Weight
2.9 lbs. (1.3 kg)
General
Product Name
Quantum HD 2 USB-C Audio Interface, UK
Series
Quantum
Color
Black
Microphone Inputs
Connection Type
XLR Female (Combo), Balanced
Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance
1600 Ohms
Dynamic Range
116 dB (A-Weighted, Minimum Gain)
EIN
-130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)
THD+N
0.002% (1 kHz, Minimum Gain)
Gain Range
75 dB
Maximum Input Level
+18 dBu (Balanced, Minimum Gain)
Phantom Power
+48 VDC
Line Inputs
Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance
10K Ohms
Dynamic Range
118 dB (A-Weighted, Minimum Gain)
THD+N
0.001% (1 kHz, Minimum Gain)
Gain Range
± 10 dB
Maximum Input Level
+18 dBu (Balanced, Minimum Gain)
Instrument Inputs
Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Dynamic Range
111 dB (A-Weighted, Minimum Gain)
THD+N
0.003% (1 kHz, Minimum Gain)
Gain Range
75 dB
Maximum Input Level
+21 dBu (Unbalanced, Minimum Gain)
Line Outputs
Connection Type
1/4" TRS Female
Main Outputs
Connection Type
1/4" TRS Female
Headphone Outputs
Connection Type
One - 1/4" TRS Female Stereo
Frequency Response
20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)
Impedance Working Range
33 Ohms
Dynamic Range
118 dB (A-Weighted)
THD+N
0.001% (1 kHz)
Maximum Output Level
11 dBu (50 Ohms)
MIDI I/O
Connection Type
5-Pin Female DIN
Power
Voltage
230V UK
Voltage Requirements
100-240 VAC, 50-60 Hz
Digital Audio
Connectivity
USB-C®
Bit Depth
32-bit
Dynamic Range
124 dB
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Measurements
Height
1.9" (48.3 mm)
Depth
7.5" (191 mm)
Width
8.5" (216 mm)
Weight
2.9 lbs. (1.3 kg)
Highlights
ULTRA-HIGH-FIDELITY RECORDING
MAX-HD preamps and high-performance converters deliver pristine audio with stunning clarity.
FENDER INSTRUMENT INPUTS
Front-facing inputs ensure guitars and basses translate perfectly to your mix.
OPTIMIZED WORKFLOW
Auto Gain, re-amp outputs, DSP monitor mixer, and loopback routing streamline recording and streaming.
FENDER STUDIO PRO INCLUDED
Get creating immediately with a perpetual license for Fender Studio Pro. Record, produce, mix, and perform in a pro DAW featuring lightning-fast workflow, inspiring tools, and exclusive Mustang Guitar and Rumble Bass amp plug-ins.
